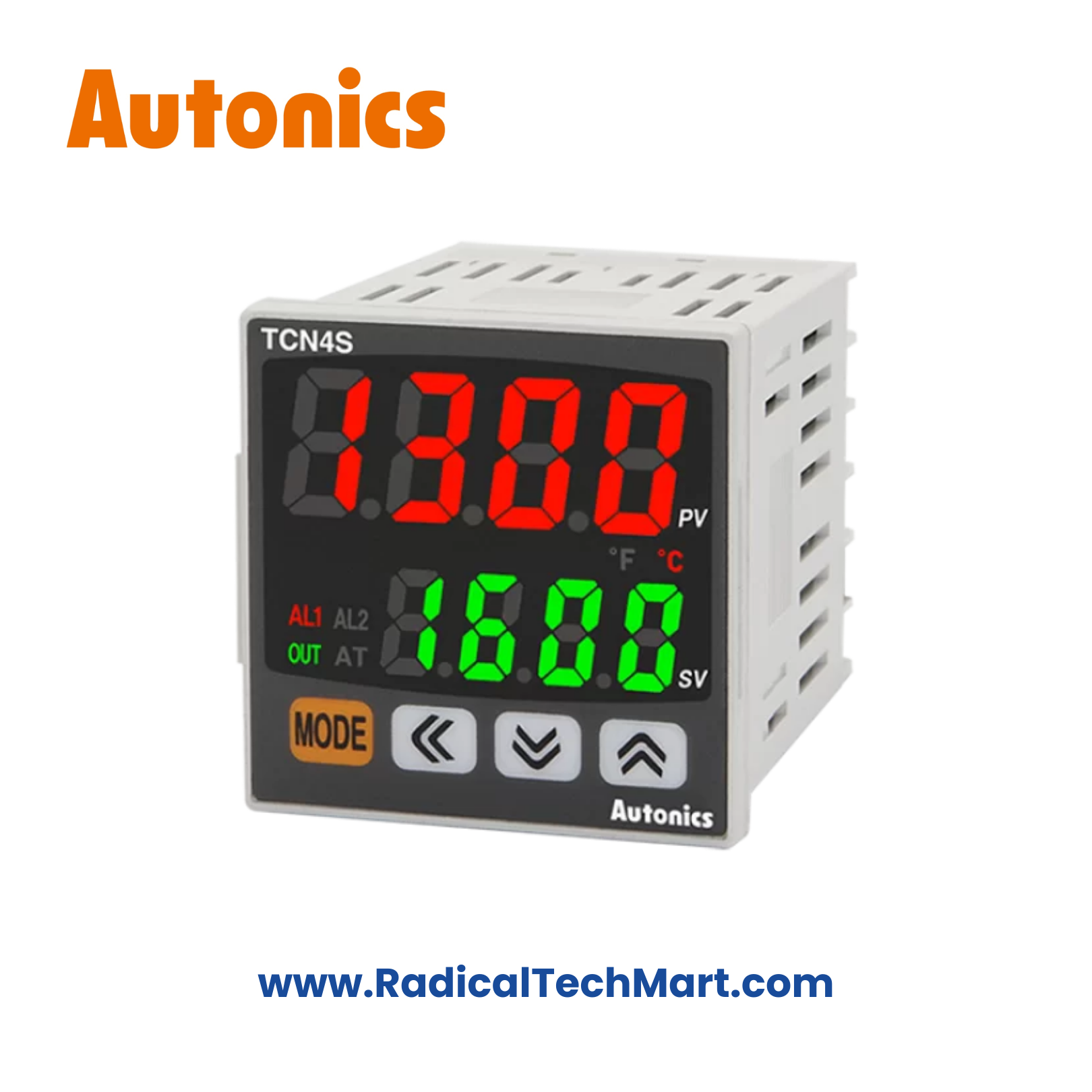

TCN4S Series Autonics Temperature Controller
Autonics TCN4S Series PID Temperature Controllers (48×48 mm)
Autonics TCN4S Series are advanced 48×48 mm PID temperature controllers with high accuracy and fast response.
They support thermocouple/RTD inputs with relay or SSR outputs for precise industrial temperature control.
Customize
Share :
The Autonics TCN4S Series are high-performance PID temperature controllers designed for demanding industrial temperature control applications. With a 48 × 48 mm DIN size, the TCN4S series offers improved accuracy, faster control response, and advanced PID algorithms compared to basic controllers.
These controllers support thermocouple and RTD sensor inputs and are available with relay output or SSR drive output, making them suitable for heaters, furnaces, ovens, and precision process control systems.
Key Features
Standard 48 × 48 mm DIN panel size
High-accuracy temperature control (±0.3% FS)
Fast sampling rate for stable PID control
Supports Thermocouple & RTD inputs
Control modes: ON/OFF, P, PI, PD, PID
Relay output or SSR drive output options
Auto-tuning and self-diagnostic functions
Designed for continuous industrial operation
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | PID Temperature Controller |
| Series | TCN4S |
| Panel Size | 48 × 48 mm |
| Sensor Input | Thermocouple (K, J, T, E, N) / RTD (Pt100) |
| Control Method | ON/OFF, P, PI, PD, PID |
| Sampling Rate | Approx. 100 ms |
| Display Accuracy | ±0.3% of FS |
| Control Output | Relay (250 VAC, 3 A) / SSR Drive |
| Alarm Output | 1 or 2 alarms (model dependent) |
| Power Supply | 24 VAC / 24 VDC or 100–240 VAC |
| Operating Temperature | −10 to +50 °C |
| Mounting | Panel Mount |
Applications
Industrial heaters and furnaces
Plastic processing machines
Packaging and sealing equipment
Food and beverage processing
Textile and chemical industries
OEM automation panels
What’s in the Box?
Autonics TCN4S Temperature Controller
Panel mounting brackets
Instruction manual
FAQ
Q1. What is the panel size of TCN4S controllers?
TCN4S models fit a 48 × 48 mm DIN panel cutout.
Q2. Which sensors are supported?
They support thermocouples (K, J, T, E, N) and Pt100 RTD sensors.
Q3. Does the TCN4S series support PID control?
Yes. It supports ON/OFF, P, PI, PD, and PID control with auto-tuning.
Q4. Are SSR output models available?
Yes. The series includes relay output and SSR drive output variants.
Q5. Where is TCN4S positioned in the Autonics lineup?
TCN4S is a high-performance PID series, positioned above TCN4L/M and below premium multi-function controllers.
